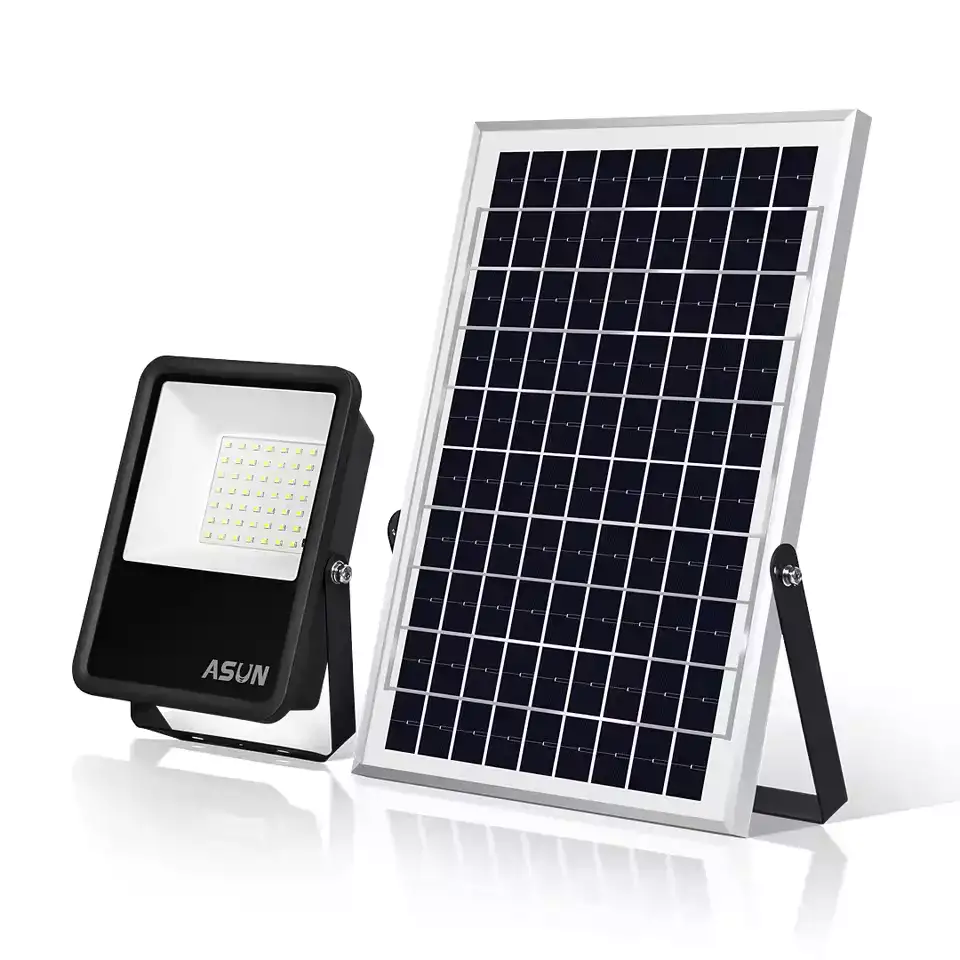

This solar flood light provides reliable, maintenance-light outdoor illumination for security, landscape, and commercial uses. It pairs a high-efficiency solar panel and long-life rechargeable battery with precision-engineered die-cast aluminum housing and a multi-function remote control. With IP66 ingress protection, robust corrosion resistance, and advanced thermal management, the unit delivers consistent lumen output through long night runs and harsh weather. Installation is straightforward; operation offers flexible lighting modes, timed schedules, and dimming. The product balances field-proven hardware with careful materials selection to maximize life-cycle performance and lower total ownership cost.

Key attributes

Technical specifications (typical model family)

Materials and mechanical engineering

Housing selection and heat management
The housing is die-cast aluminum. This choice brings key benefits: excellent thermal conductivity for LED heat dissipation, dimensional stability for precise lens sealing, and good strength-to-weight ratio. Thermal fins are integral to the casting, creating high surface area for convective cooling. Effective passive cooling reduces junction temperature, which directly extends LED life and preserves luminous flux.

Corrosion resistance and surface treatment
Raw aluminum alloys require finishing to resist aggressive outdoor environments. A multi-step surface process—chemical conversion (e.g., chromate-free passivation), high-quality powder coating, and optional primer—yields a protective barrier. For marine or heavily corrosive sites, specify thicker powder-coat or use corrosion-resistant alloy grades plus stainless fasteners. Silicone gaskets and EPDM seals preserve ingress protection while accommodating thermal expansion.

Fasteners, connectors, and hardware
External screws and clamps employ 316 stainless steel to avoid galvanic corrosion. Internal wiring uses tinned copper conductors and sealed cable glands; potting or gel in sensor housings prevents moisture ingress. The tilt and swivel bracket uses captured bolts with nylon locking to retain aiming after thermal cycles and vibrations.

Optics and mechanical seals
Tempered glass resists impact and preserves optical performance over time. For lighter models, polycarbonate optics with UV stabilizers are an option but require anti-scratch coating. The optical assembly mounts to a continuous gasket and use clamps distributed to maintain even compression. This prevents water intrusion while avoiding point-load deformation that can produce micro-gaps.

Electrical design and energy management

Solar panel selection
High-efficiency monocrystalline cells provide the best power-to-area ratio, enabling smaller panels to charge sufficient battery capacity. Anti-reflective coatings and an angled, dirt-shedding frame improve real-world yield.

Battery chemistry and lifetime
LiFePO₄ chemistry is preferred for outdoor flood lights for its thermal stability, deep-cycle durability, and long cycle life (often >2000 cycles at 80% depth of discharge). Configure battery capacity to meet required night autonomy; e.g., 50–72 hours of low-level operation or multiple nights with motion-based high-power boosts.

Charging and power electronics
MPPT controllers harvest up to 30% more energy in challenging light compared to PWM controllers by optimizing panel operating point. Integrated protections include overcharge, over-discharge, short-circuit, and temperature compensation. LED driver stages use constant-current regulation with ripple suppression to minimize flicker and maximize efficacy.

Light control strategies

• Photocell for dusk-to-dawn automation.

• Motion-triggered boost: low-level baseline illumination with rapid increase on PIR detection.

• Timer presets to limit night operation and conserve battery during extended cloudy periods.

• Remote-controlled dimming to tune lumen output and runtime trade-offs.

Photometry, color, and performance metrics

Luminous efficacy and color temperature
Choose LED packages with high luminous efficacy; expect 120–160 lm/W for modern arrays. Offer correlated color temperatures (CCT) from warm white (3000 K) for residential ambience up to cool white (6000–6500 K) for security visibility. High CRI options (≥80) improve color rendering for surveillance cameras.

Beam control and distribution
Optical lenses shape the flood pattern. Use wider beam angles (e.g., 120°) for large-area wash and narrower optics (e.g., 60°–90°) for targeted security illumination. Fresnel or TIR optics deliver consistent intensity and reduced glare.

Maintenance of lumen output
Thermal design, driver selection, and quality LED bins limit lumen depreciation. The product targets L70 at 50,000 hours—meaning luminous output remains above 70% for most of its rated life. Proper operating conditions (ambient temperature and ventilation) improve this metric.

Installation, placement, and aiming

Mounting options and best practices

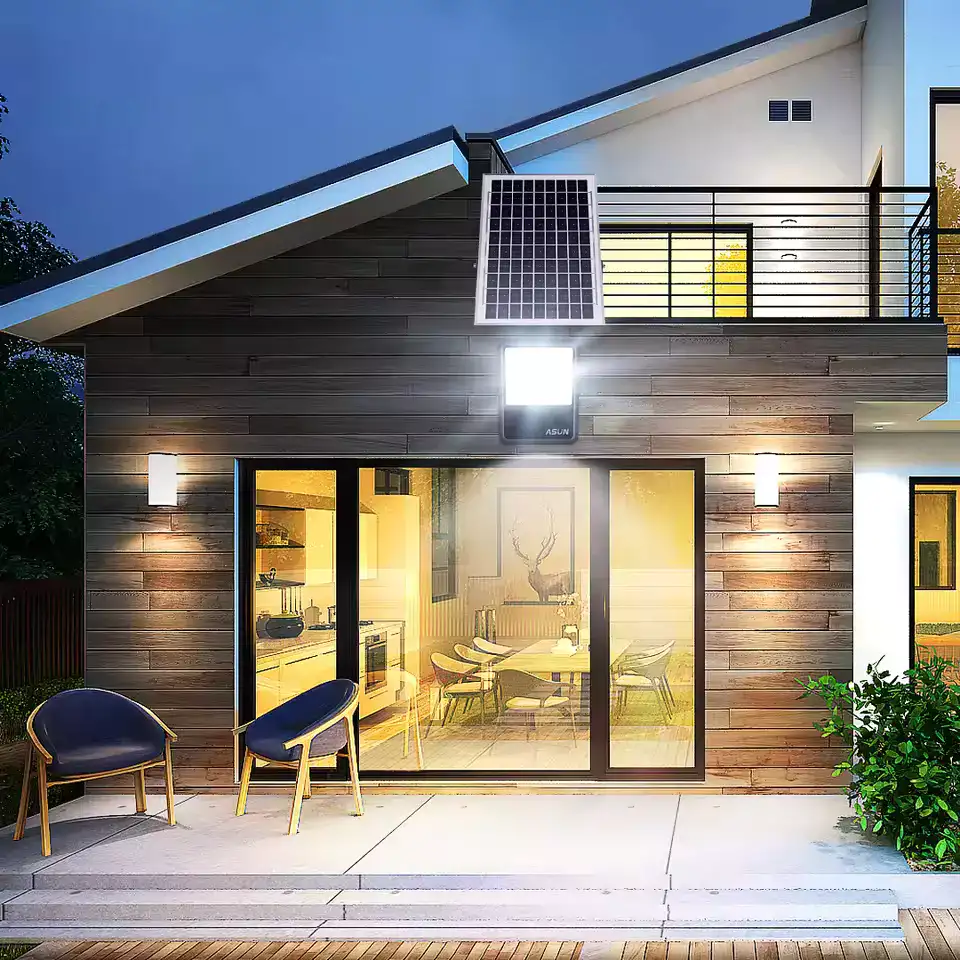

• Wall mount: Secure bracket with expansion anchors into concrete or masonry. Maintain a slight downward tilt for water runoff.

• Pole mount: Clamp assembly to standard poles; select appropriate bracket for pole diameter.

• Stake/floor mount: Use heavy-duty ground stakes or bolted base plates in soft or concrete ground respectively.

Aiming guidance
Aim the fixture to avoid direct glare into windows and to cover intended zones with overlapping beams to prevent dark spots. For security zones, mount at 3–6 meters height; adapt mounting height to lens beam angle to achieve desired illuminance at ground level.

Conduit and wiring notes
If hardwired control or external battery integration is required, use UV-rated cables and rated connectors. Provide a service loop for panel cleaning and battery access. For severe climates, consider freeze-protection measures for the battery enclosure.

Remote control and user interface

Remote functions overview

• On / Off toggle.

• Three-step dimming (e.g., 30% / 60% / 100%).

• Timer presets: 1 hour, 3 hours, 6 hours, or dusk-to-dawn memory.

• Motion override: temporarily bypass photocell for continuous illumination.

• Custom mode store: retains preferred setting after power cycles.

Human factors and ergonomics
The remote keypad employs tactile buttons and clear iconography. For property managers, group control via multiple remotes or centralized controllers enables coordinated schedules across multiple fixtures.

Range and interference mitigation
Infrared remotes typically work within line-of-sight distances of 8–15 meters. Offer RF remotes or Bluetooth mesh variants for non-line-of-sight control and longer-range commands. RF solutions require pairing and may include encrypted ID to avoid accidental cross-control.

Durability testing, certifications, and compliance

Ingress and environmental testing
IP66 rating is achieved through gasket sealing, lens retention, and drain channels that prevent water pooling. Units pass spray tests at defined pressures and angles. Salt-spray or neutral salt fog (NSF) testing is recommended for coastal applications.

Thermal cycling and mechanical shock
Thermal shock tests across operating temperature range evaluate seal integrity. Vibration tests simulate wind and transportation conditions. Impact tests validate lens and housing resilience.

Electrical safety and EMC
Fixtures comply with basic electrical safety standards depending on destination market: double-insulation, proper fusing, and surge protection features. For regions with lightning risk, include transient protection devices. Electromagnetic compatibility reduces interference with wireless controls.

RoHS and material declarations
Lead-free soldering and restricted substance compliance help meet procurement requirements for commercial clients. Provide materials declarations and recyclability notes for end-of-life handling.

Comparative table — model examples and application fit

Life-cycle, sustainability, and environmental considerations

Energy savings and carbon reduction
Eliminating grid-supplied lighting reduces operating emissions immediately. Over its lifetime, the solar LED unit offsets emissions from fossil-fuel-sourced electricity and avoids recurrent wiring work.

End-of-life handling
Battery recycling (especially LiFePO₄) and proper disposal are essential. Offer take-back programs or clear instructions for regional recycling centers. Housing metals and glass are recyclable; design for disassembly speeds recycling and lowers embodied energy.

Material sourcing and conflict minerals
Use vetted suppliers for rare materials and follow procurement best practices. Provide material declarations and evidence of supplier audits to satisfy institutional purchasers.

Packaging, shipping, and logistics

Protection during transport
Nested foam inserts and sealed internal components prevent movement, shock, and moisture during shipping. Include a desiccant packet for long transit times in high-humidity routes.

Customs and export-ready documentation
Supply export paperwork, test certificates, and packing lists to expedite customs. For bulk orders, palletized packaging and container-stow optimization reduce freight costs.

Maintenance, troubleshooting, and service

Routine maintenance checklist

• Clean solar panel surface every 3–6 months or more often in dusty regions.

• Check sealing gaskets for compression and surface damage annually.

• Verify fastener torque and bracket integrity after severe storms.

• Monitor battery capacity annually and schedule replacement when runtime falls below design target.

Common issues and fixes

• Reduced runtime after prolonged cloudy weather: check battery health and panel orientation; consider larger battery model if location is persistently low-irradiance.

• Intermittent remote response: replace remote batteries or check for line-of-sight obstacles; consider RF remote option.

• Water ingress (rare): inspect gasket seating and lens clamp torque; replace gasket if deformed.

Spare parts and field-serviceable design
Design allows battery trays and controller modules to be replaced with basic hand tools. Offer pre-tested replacement battery modules to simplify field swaps.

Packaging of specifications for procurement teams

Provide a concise procurement sheet including: model number, lumens, CCT, CRI, solar panel wattage, battery capacity and chemistry, mounting options, IP rating, material finish, warranty terms, and expected lifetime hours. Include recommended site planning notes: optimal tilt, azimuth, and shading allowances.

Frequently asked questions

1. How long will the light run through the night on a full charge?
   Runtime depends on model output and battery capacity. For standard mid-power units, expect 8–12 hours at nominal output. Models with motion-triggered boost often provide several nights of baseline operation because they use low-level standby with occasional high-output bursts.

2. What does IP66 mean and how is it different from IP65?
   IP66 indicates complete protection against dust ingress and protection against heavy jets of water from any direction. IP65 also protects from water jets but at a lower pressure; IP66 provides greater resilience to wind-driven rain and washing.

3. Can the product be hardwired to the grid or integrated into existing lighting control?
   The unit is primarily designed for off-grid solar operation. Some models support auxiliary input or a parallel control interface for hybrid installations; consult factory options if grid-connection or centralized BMS integration is required.

4. Which battery type is used and how often does it need replacement?
   LiFePO₄ is recommended for its cycle life and thermal stability. Typical lifetimes range from 3–8 years depending on duty cycle and climate. Battery life reduces in extreme heat; sizing for cycle depth-of-discharge improves longevity.

5. Is the remote control waterproof and what range does it have?
   Remotes are not intended for immersion; they have basic splash resistance if exposed briefly. Infrared remotes require line of sight up to about 10–15 meters. RF or Bluetooth variants extend range and bypass line-of-sight limitations.

6. How should I orient the solar panel for best performance?
   Tilt the panel equal to local latitude for year-round performance, and orient toward true south in the northern hemisphere or true north in the southern hemisphere. Avoid shading from trees, walls, or poles; even small shadows greatly reduce panel output.

7. What maintenance is required for coastal or salt-spray environments?
   Specify enhanced coatings and 316 stainless hardware for salt resilience. Rinse with fresh water periodically to limit salt deposits. Inspect seals and fasteners more frequently.

8. What warranty and after-sales support are provided?
   Warranty terms vary by region and model: typical coverage includes 2–5 years for the fixture and 1–3 years for batteries. Extended warranty and service contracts are available for large projects. Support includes technical documentation, mounting guides, and replacement parts.
